2.8MM Lens 5MP 25FPS Underwater IP Camera with Fish Counter Function

Underwater IP Camera with Fish Counter Function DZ10010-SS(UW-S5-3CX)


Application:

  • Aquacultrue

  • Hydrological research

  • Offshore survey

  • Analusis of the underwater ecosystem

  • Seawater and freshwater research

  • Underwater wedding photograghy

  • Subsea survey

  • Fishing

  • Another visual applications


Detail spec:
Camera Dimension Ø70mm*100mm(L)
Sensor 1/2.7"OV CMOS sensor,color0.01 Lux F1.2;black/white 0.001Lux F1.2
Sensor Option With fish counting fuction when the fish swimming at the front of the lens
Lens 2.8mm (H.FOV:100°)
Resolution  5MP 2592*1520 25FPS
Illumination  Built-in 3pcs led lights and 4 pcs infrared lights,10 level dimness;400Lumen
Water Depth 500Kpa(50M)
Camera Housing  316L stainless steel

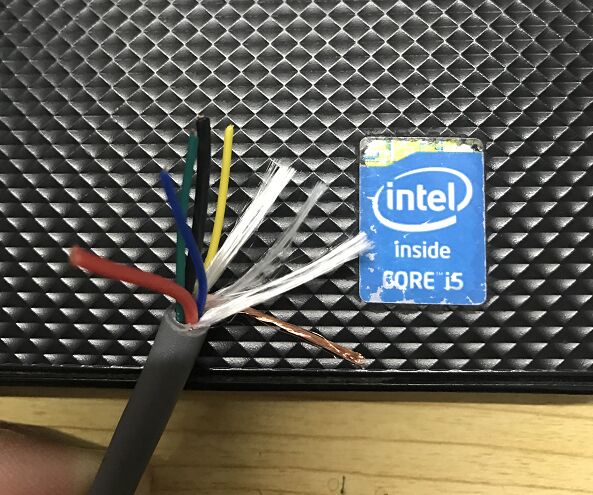

Cable

10M-80M length,Ø7mm industrial cable.Resisstance to 60KG pull.Anti-aging,

anti-friction,resistance to seawater corrosion.

Support Device  Computer,NVR.Compatible with hikvision,dahua,proprietary protocol
Only support windows-IE broswer for camera internal parameter setting
Support Agreement

IPv4/IPv6,802.1X,http,https,TCP/IP,UDP,RTP,RTCP,UPNP,RTSP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,RTSP,ONVIF,SDK secondary development kit

Use Environment Sewater/Freshwater/Underwater,land,Car,Shipborne
Working Humidity  0% - 100%
Working Temperature  -22℃ - 55℃






Power Supply

Cable length ≤ 10 meters;3 options:

Default options 1:DC12V/POE 48V-54V IEEE.802.af power input and output pin:

1, 2 (+) / 3, 6 (-);

options 2:DC12-DC28V/AC12-AC28V;
options 3:POE 48V-54V IEEE.802.af power input and output pin: 1, 2 (+) / 3, 6 (-),4, 5 (+) / 7, 8 (-);
Cable length 11-70 meters;2 options:
options 1:DC24V/AC24V;
options 2:POE 48V-54V IEEE.802.af power input and output pin: 1, 2 (+) / 3, 6 (-),4, 5 (+) / 7, 8 (-);
Net Weight 2KG




Packing List

1*Camera head

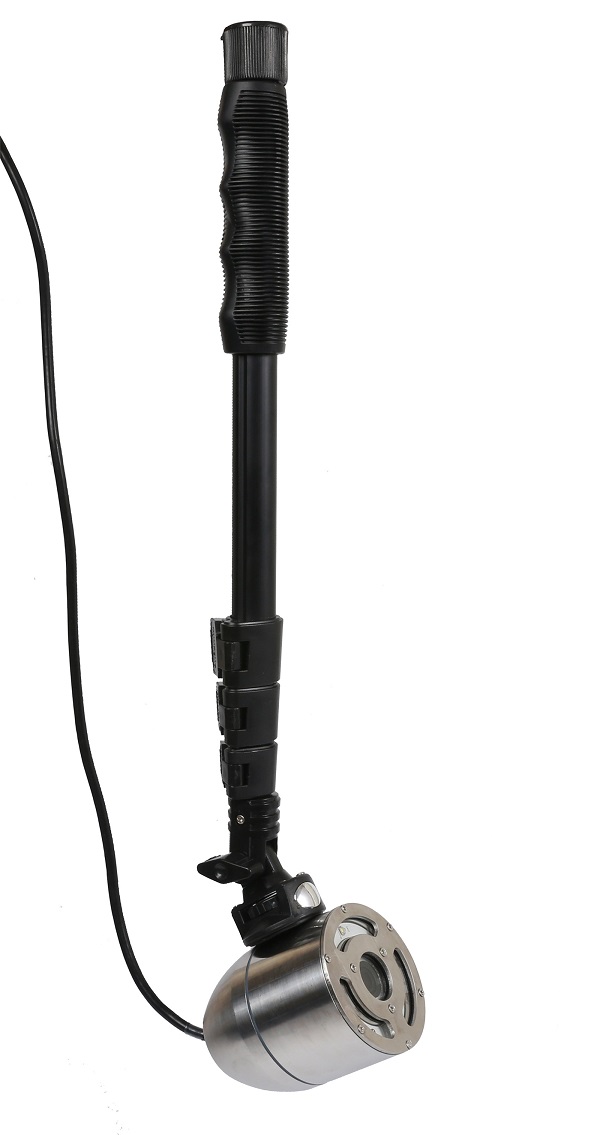

1*Bracket
1*U disk (instruction and software)

Detail Spec of DZ10010-SS(UW-S5-3CX) wiith Fish Counter Function.pdf

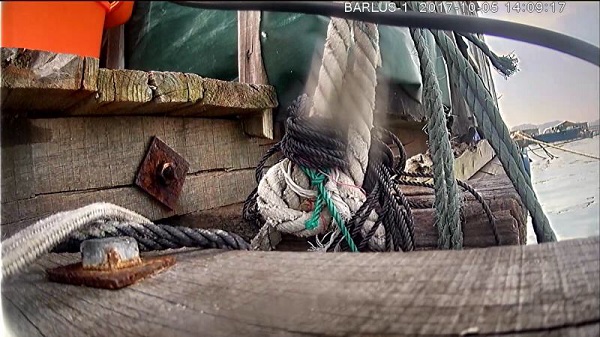

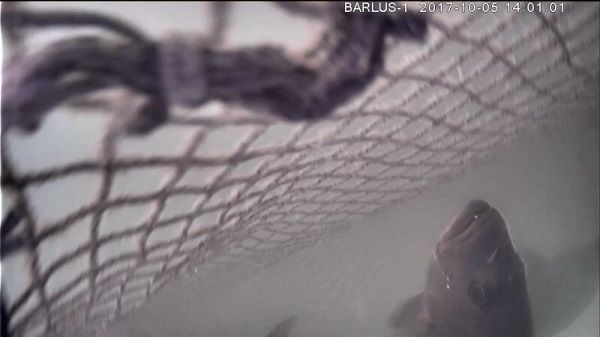

  • Camera Working on the Site

Packing:

DZ10010-SS(UW-S5-3CX) with fish counter pic10.jpgDZ10010-SS(UW-S5-3CX) with fish counter pic8.jpg

DZ10010-SS(UW-S5-3CX) with fish counter pic2.jpgDZ10010-SS(UW-S5-3CX) with fish counter pic1.jpg

Product Downloads

Detail Spec Download

You may also like

The remote underwater video surveillance  camera DZ10010-SS (UW-S5-3CX) features a fish-counting function for fish passing in front of the lens.This design is highly favored by customers.It is suitable for aquaculture,aquarium breeding,laboratory observation,undersea marine-life research,diving adventure photography,underwater engineering inspection,downhole observation,fishing,and other vision applications.
