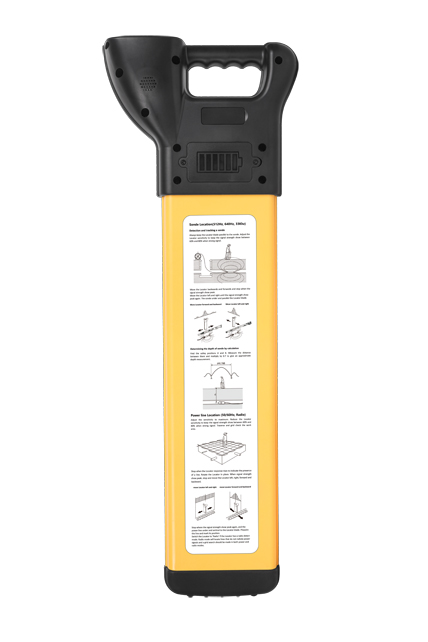

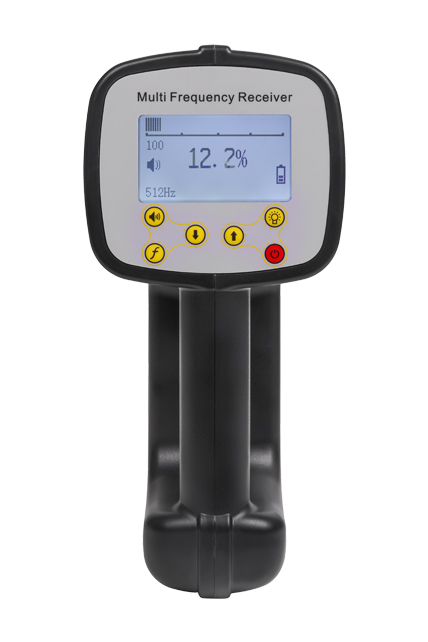

512Hz640Hz33KHz Multi Frequency Pipe Locator MUR009
512Hz640Hz33KHz Multi Frequency Pipe Locator MUR009
| Detail spec: | |
| Frequency |
512Hz,640Hz,32.768kHz,Power-50Hz,Power-60Hz,Radio(6KHz-22KHz) |
Battery Capacity |
7.4V 2200mAh Li-Ion battery package (Built-in) |
Work Current |
100mA(approx) |
| A Single Charge Work Time | 15 Hours(approx) |
| Charging | DC 5V 1A |
| Charge Time | 3 hours |
| Signal Strength |
LCD bar graph and sound volume.Relative Digital Signal Strength readout from 0% to 99.9% |
| Gain Control | Up/down button for automatic centering.And manual control |
| Water-proof | IP64 |
| Operating Temperature | -10°C to +50°C (14℉ to 122℉) |
| Weight | 2.0kg |
Dowloa the detail spec and manual instruction from:
33KHz Locator user manual MUR009.pdf
Product Downloads
Detail Spec Download
