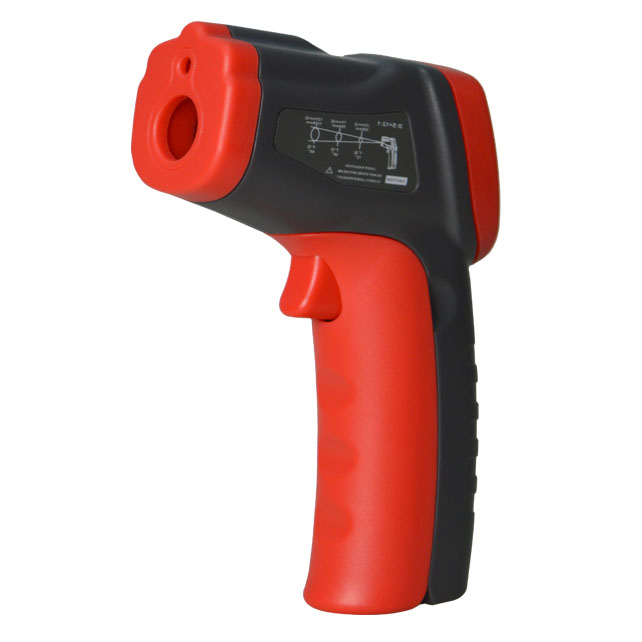

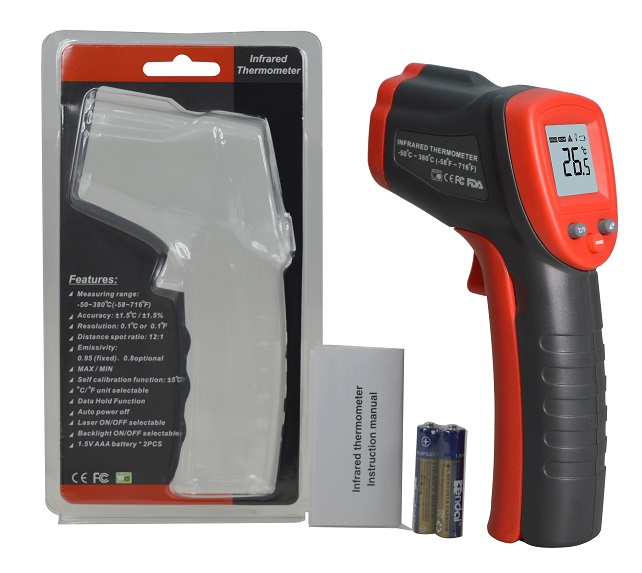

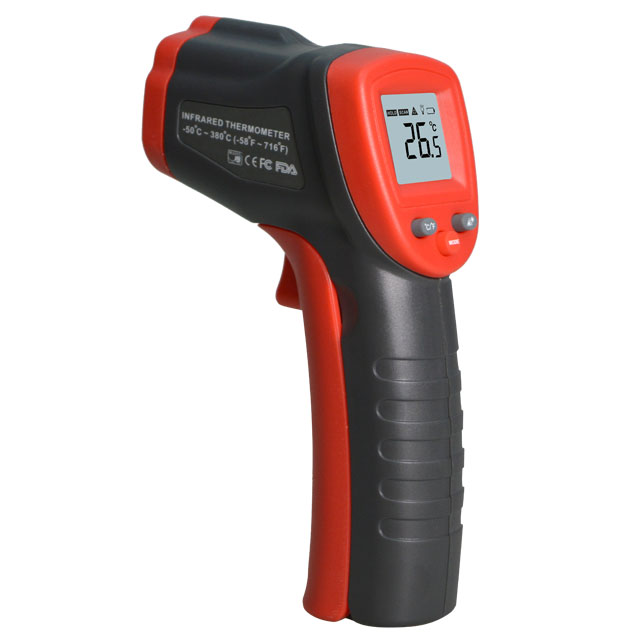

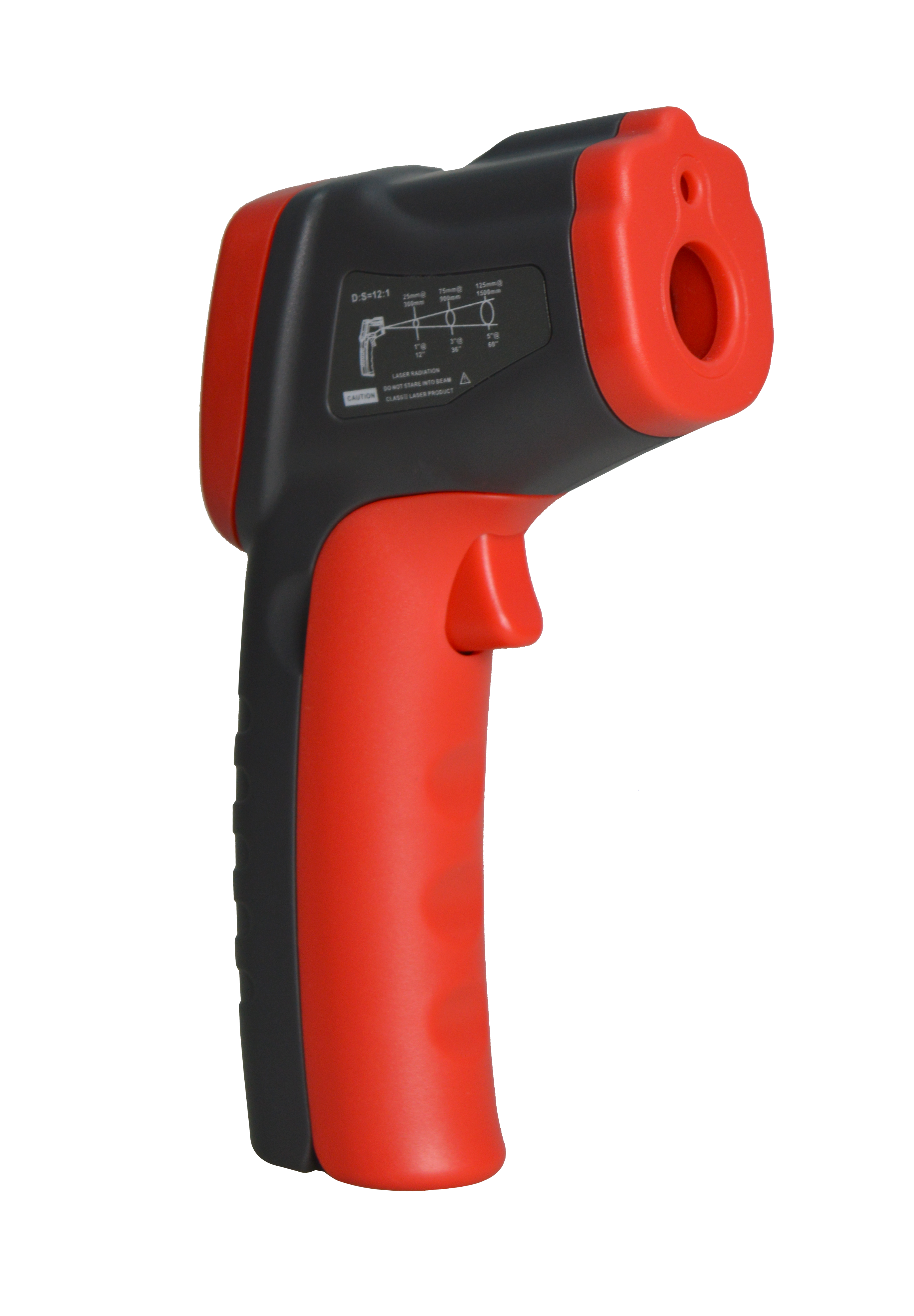

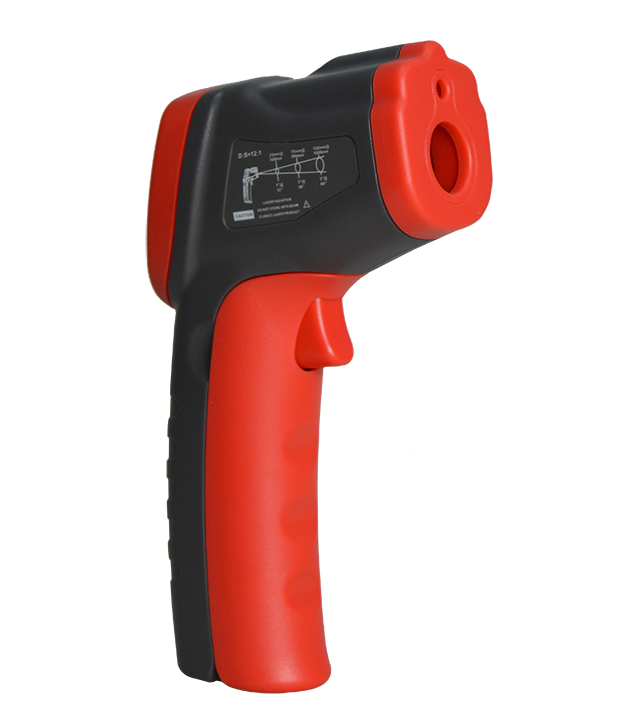

T10000 Infrared Thermometer

Infrared Thermometer T10000

           This unit consist of optics,temperature sensor signal amplifier,processing circuit and LCD display.The optics collected the

infrared energy emitted by object and focus onto the senor.Then the sensor translates the energy into an electricity signal.This signal will be turned out to be digitalshown on the LCD after the signal amplifier and processing circuit.

Detail Spec

T10000

Technical Indicators


Measuring Range

-50℃-380℃

(-58℉-716℉)

Precision

±1.5% or ±1.5℃

Repetitive

1% or 1℃

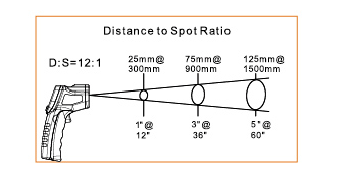

Distance and Spot Ratio

12:1

Emissivity

0.8 or 0.95

Resolution

0.1℃or 0.1℉

Response Time

500ms

Response Wavelength

5-14μm

Peculiarity


℃ and ℉ Unit Conversation

√

Keep Data Display

√

Locate Laser ON/OFF

√

LED Back Light ON/OFF

√

Auto Power-Off

√

Conventional


Products Size

93.24mm*43mm*150.03mm

Products Weight

131.37g(+batteries)

Power Supply

2*1.5V AAA batteries
