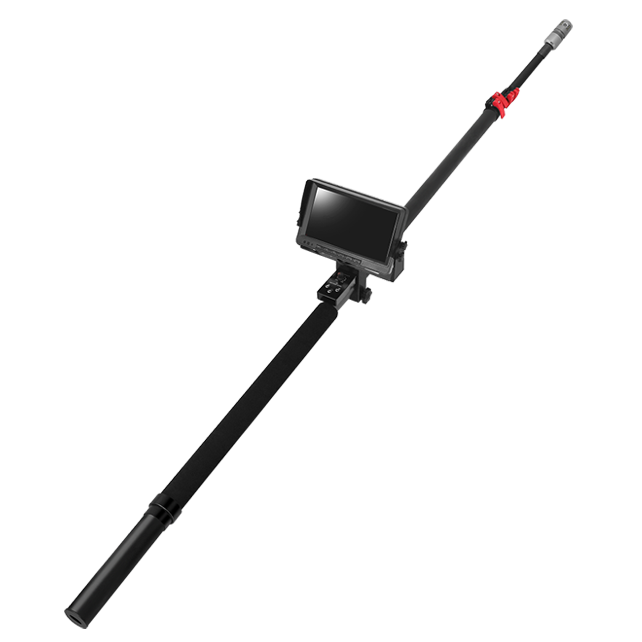

Telescopic Pole Inspection Camera
Carbon Telescopic Pole Inspection Camera TPV1001
Application:
Roof inspection
Wooden pile inspection
Bridge pipe inspection
Fire rescue
Field explore
| Detail spec: | ||
|
Camera#1 |
Camera#2 | |
|
Image |
![Detail spec o of the TPV001 Image[2].png](https://www.royaltoolpro.com/upload/default/20260826/7787bff0f6dcbb16f6a43ac9b5dc093a.png "Detail spec o of the TPV001 Image[2].png")
|
![Detail spec o of the TPV001 Image[1].jpg](https://www.royaltoolpro.com/upload/default/20260826/66d70df68a438f43bec21ace3e94a7f9.jpg "Detail spec o of the TPV001 Image[1].jpg")
|

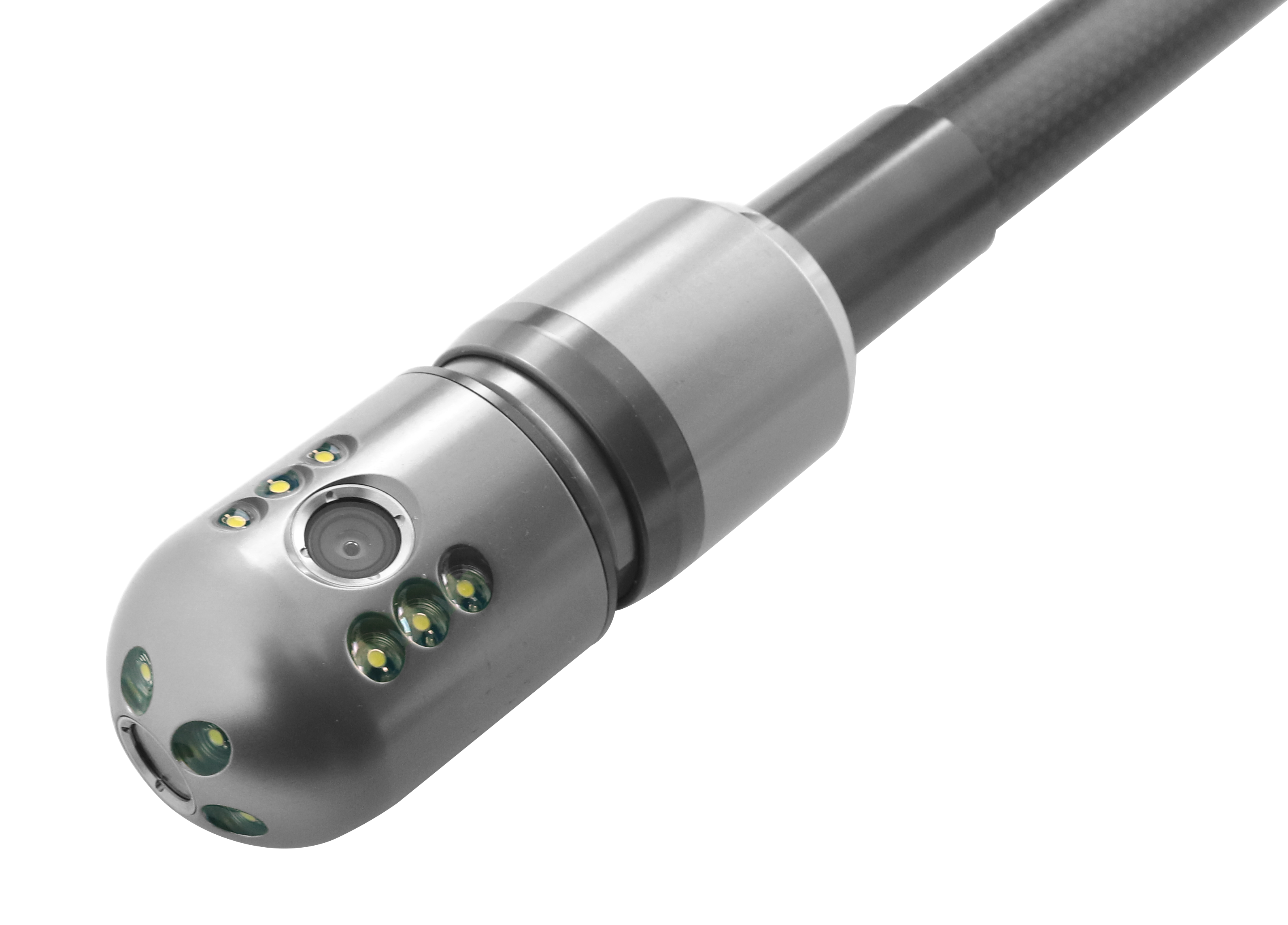

| Dimension | AHDΦ45mm dual lens,side lens with 360° endless rotation |
Φ29mm fix lens CVBS signal |
| Sensor | sensor 1024*768V | 420TVL,CMOS sensor |
| Illumination |
Each lens with integrated 6 pcs led lights(brightness adjustable) |
Integrated 12 pcs led lights (brightness adjustable) |
| View Angle | 120° view angle | |
| Waterproof | 30M | |
| Telescopic Pole Length | 7.2M carbon fiber | 3M aluminum material |
| Extra Extend Knot | 2pcs max | |
| Total Length Max | 7.2M | 4.6M |
| Gross Weight | 19KG | 8KG |

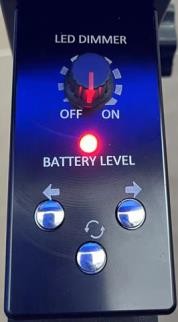

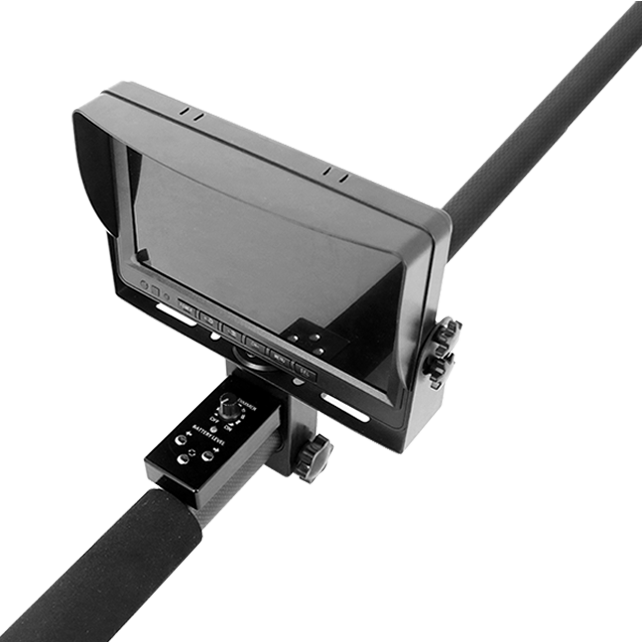

| Surface Control Suitcase | ||
![Detail spec o of the TPV001 Image[3].jpg](https://www.royaltoolpro.com/upload/default/20260826/4f053398ed64a7842a6b18809c48198a.jpg "Detail spec o of the TPV001 Image[3].jpg")
|
9”LCD screen | |
| Video/audio/photography recording | ||
| 1024*600 resolution | ||
| DC12V power in | ||
| 720P video quality | ||
|
Built-in 4400Ma li-ion battery pack |
|

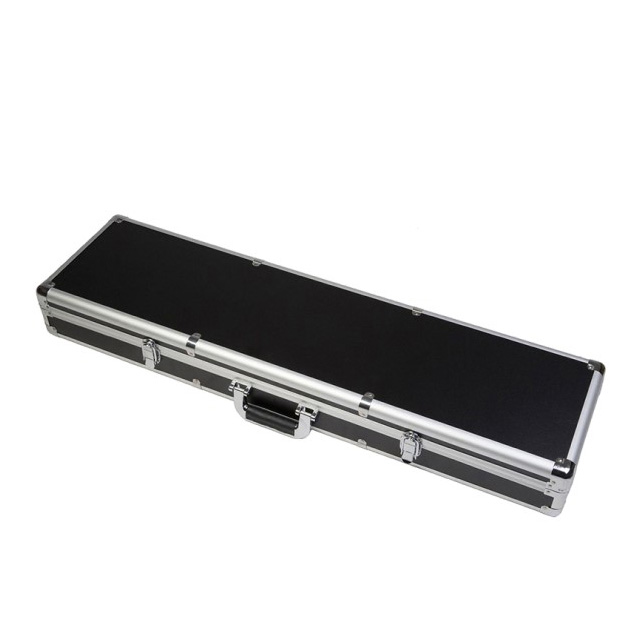

| Aluminum Alloy Carry Case | ||
![Detail spec o of the TPV001 Image[5].jpg](https://www.royaltoolpro.com/upload/default/20260826/1bfed77132c0dd1cd134e5019082e028.jpg "Detail spec o of the TPV001 Image[5].jpg") |
Packing carton size |
(L)195cm*(W)40cm*(H)20cm |
| Gross weight | 19KG | |

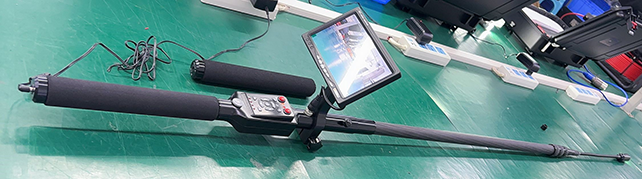

The Equipment Under Testing in Factory:
Detail spec o of the TPV001.pdf
