HD and Double Wheels Pipe Inspection Camera System

HD and Double Wheel Pipe Inspection Camera System P100PTF-UD2

Application:

• Sewer pipe and wall inspection

• Underground pipe wall inspection

• CCTV drain pipe sewer inspection

• All other confined spaces

Detail spec:

Camera#1: 360°rotation head

• Φ33mm*225.7mm(L),Pan:360°,Tilt:180°,manual focus

• Built-in FM512Hz sonde

• 1/3 CMOS sensor,view angle:120°

• 1080P full HD

• Integrated 4pcs led lights and dimness

• Sapphire glass lens window

• Work for Ф33mm-200mm pipe,go 90°bend in Φ75mm pipe

• Freshwater depth:50M

• Waterproof:IP68

• Ф105mm&Ф65mm skids

Camera#2: Fix Lens

• Φ23mm*68mm(L)

• 1/3 CMOS sensor,1080P full HD

• View angle:120°

• Waterproof:IP68

• Integrated 12pcs led lights,dimness

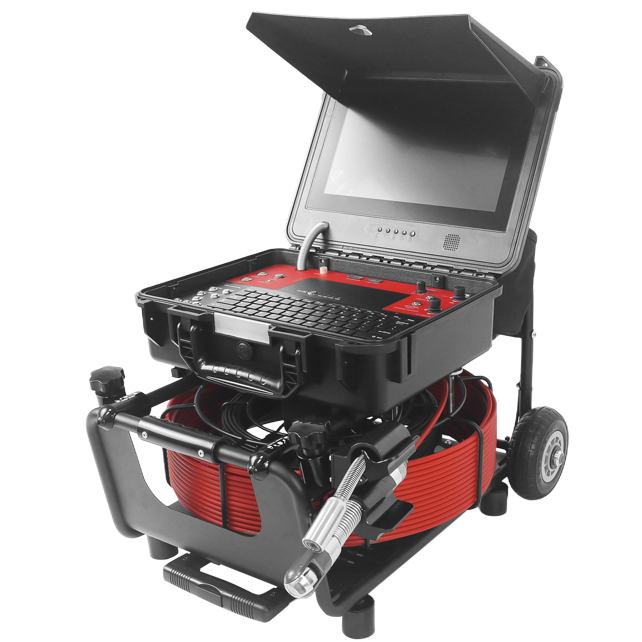

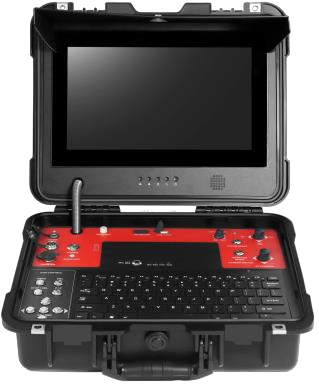

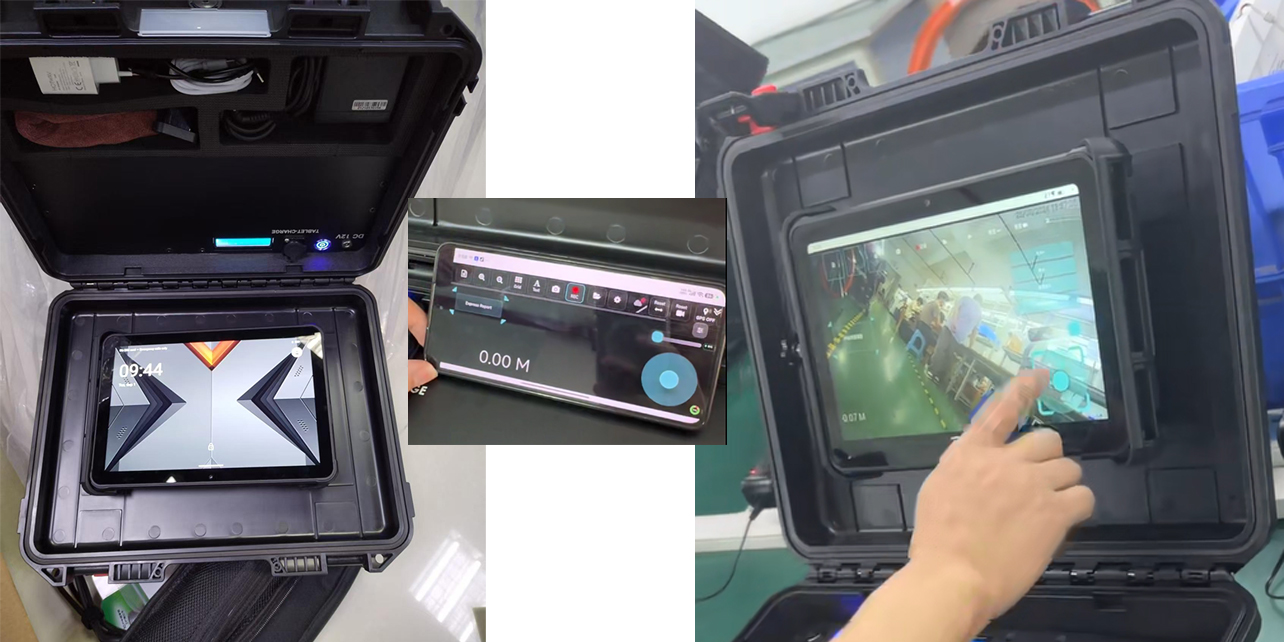

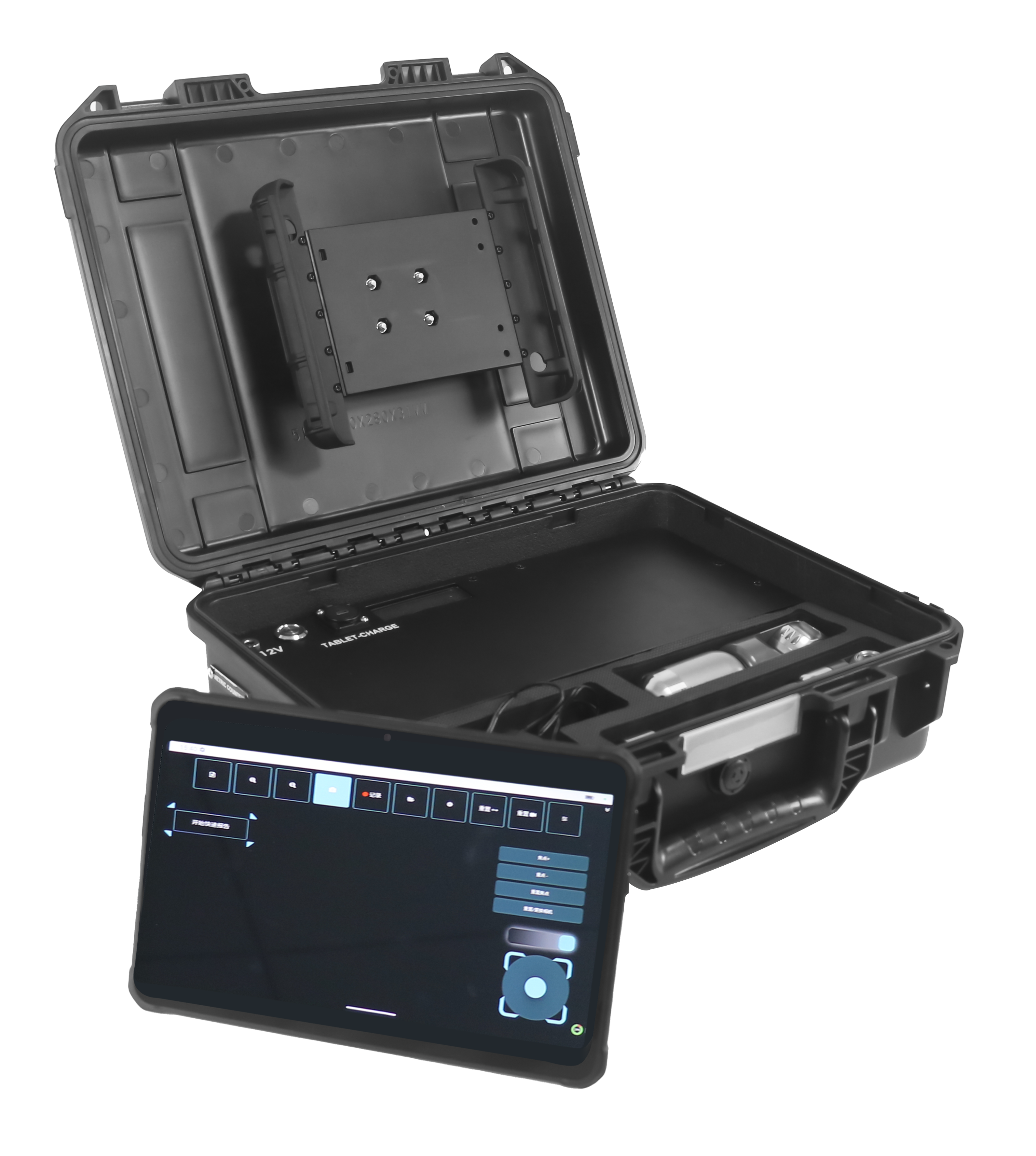

Portable Control Unit

• 13” HD IPS LCD screen,1280*720 resolution / 10.1" touch screen and WIFI(phone can view the video)

• HD DVR system with 1080P recording

• Video,audio recording and photography function

• Red and black control panel

• USB wireless keyboard real time typewritting

• Built-in 8800mA rechargeable li-ion battery pack

• Battery level indication

• HDMI jack available that  compatible with another monitor

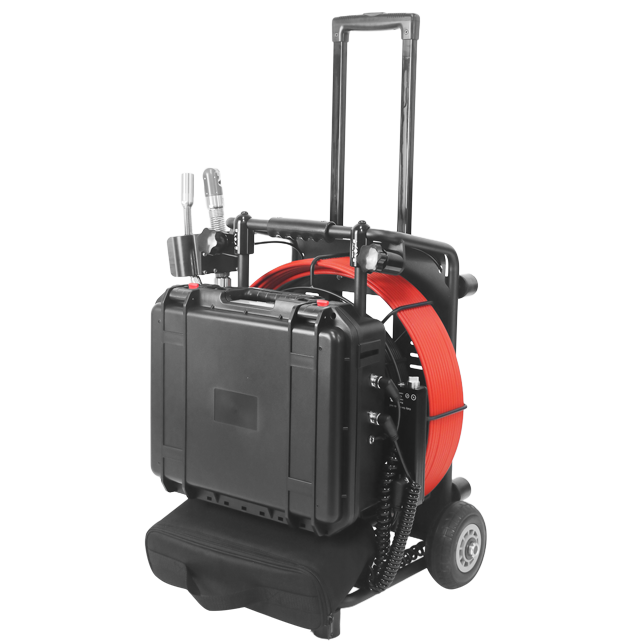

• Detachable from the cable wheel drum

Cable#1(inner)

• Φ5.2mm black push rod cable,40M length

• Reel size:30cm*30cm

• Without digital meter-counte

• Work with fix lens



Cable#2(outer)

• Φ7mm red push rod cable,60M length

• Reel size:45cm*45cm

• With digital meter-counter

• Work with PT lens

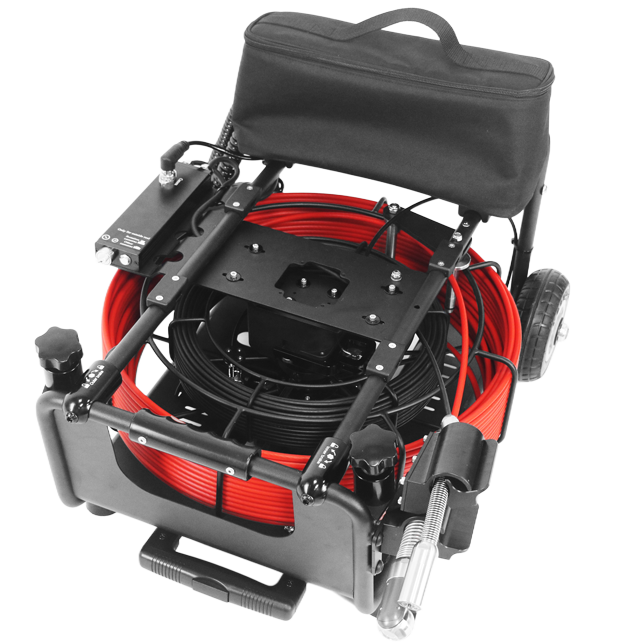

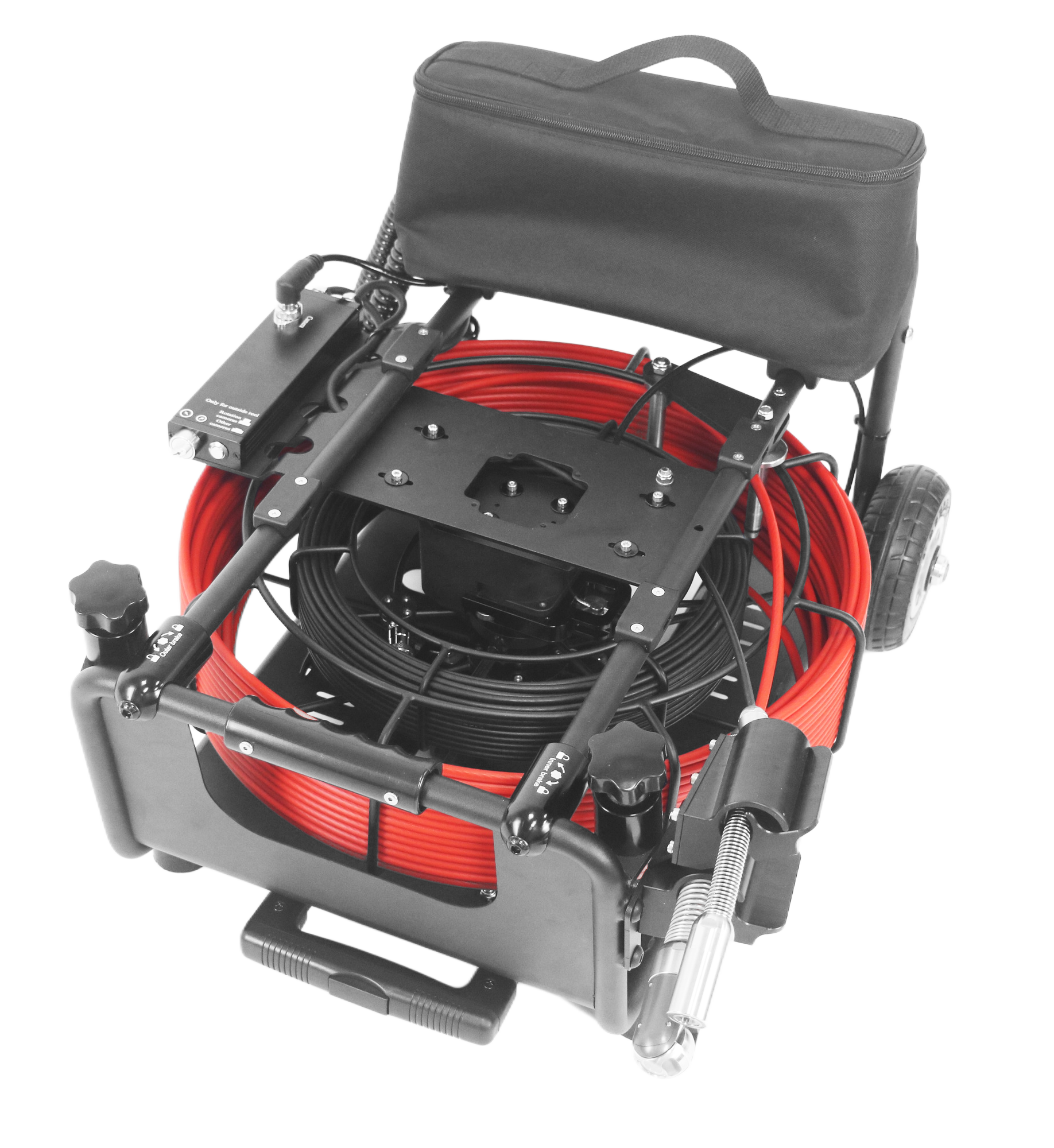

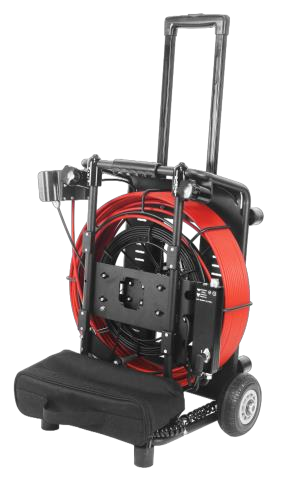

  Cable drum with two reels and pull rod to carry

Packing:

• Net Weight:17KG

• Packing Carton Dimension:69cm*53.5cm*49cm

Packing Pictures:

Spec of the P100PTF-UD2.pdf
