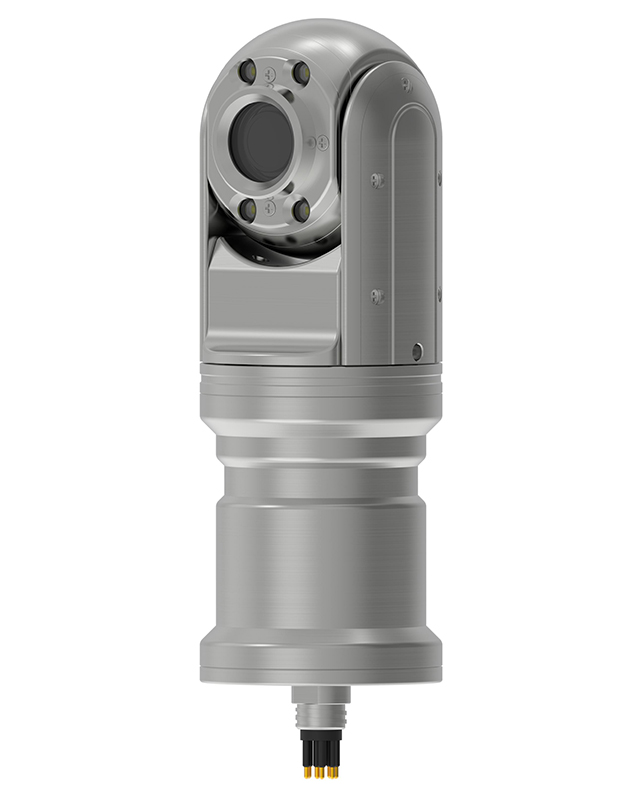

5MP and 3XOptical zoom lens PTZ Industrial Subsea Video Camera
Subsea PTZ camera DZ10010-SS-PTZ90
Application：
Offshore oil and gas
Oceanographic
Fish net pen inspection
Offshore survey
Analysis of the underwater ecosystem
Subsea drilling and ROV operation
Seawater and fresh water research
Salmon fish monitoring and control
Filed biologist for field work or field work
All other visual applications
| Detail spec : | |

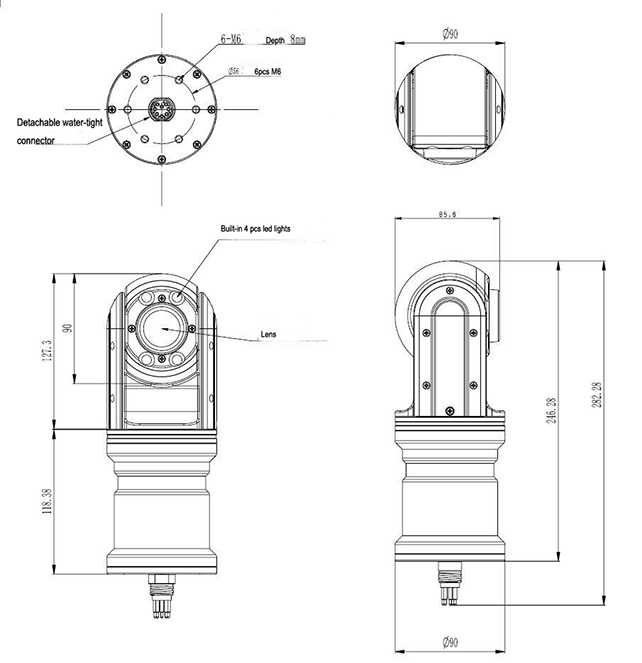

| Canera Head Dimension | Ø90mm*282mm(H) |
| Sensor | 3.6-12mm,3X optical zoom lens |
| Lens | 1/2.5" SONY CMOS sensor,color 0.001Lux F1.2,Black/white 0.0001LuxF1.2 |
| Rotation | Pan:360° endless,Tilt: 220° |
| Illumination | Built-in 4pcs white led lights,10 level dimness |
|
Resolution |
5MP 2590x1944P 30fps/50fpS |
| 4MP 2592x1920P 30fps/60fps | |
| 3MP 2048x1536P 60fps | |
| 2MP 1920x1080P 60fps | |
| Image Color | Full color |
| Camera Housing Material | Tianium |
| Waterproof | IP68,water depth:50M/100M;Permantely install underwater seawateer |
| Cable |
Ø12mm thickness industrial cable.Resistance to 60KG pull, anti-friction,anti-aging,anti-seawater corrosion |
| Cable End | Detachable water tight connector |
| Support Device | Computer,NVR |
|
Support Agreement |
IPv4/IPv6,802.1X,HTTPS,HTTP,TCP/IP,UDP,RTP,RTCP,UPNP,RTSP, SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTR,RTSP,RTMP,ONVIF; SDK secondary development |
| Use Environment | Seawater/fresh water/land |
| Working Humidity | 0% - 100% |
| Working Temperature | -20℃ ~ 55℃ |
| Power Supply | DC24V |
| Net Weight | 3.3KG |
| Package | 1*Camera;1*Bracket;1*U disk(instruciton and software) |
Spec of Product Downloads
