Mini HD Pipe Inspection Camera System
Mini HD Pipe Inspection Camera System PSE10020
Application:
Buried pipe wall inspection
Kitchen sink inspection
WC bathroom inspection
Buried utility project inspection
Turbine inspection
Stormwater and sewer pipe inspection
All the other visual applications
| Detail spec: | |
| HD Mini Camera head | |
| Head Dimension | Φ20mm*26.5mm(L);1080P full HD |
| Spring Length | 133.5mm |
| Sonde(Option) | Built-in FM512Hz sonde |
| Work Pipe | Φ30mm-Φ100mm pipe |
| Sensor | HD moduel,1/3"cmos,2MP resolution |
| View Angle | 90° |
| Illumination | Built-in 6pcs white light led lights.Dimness available. |
| Waterproof | IP68 |
| Camera Guide | Φ30mm and Φ50mm skids |
| HD DVR | |

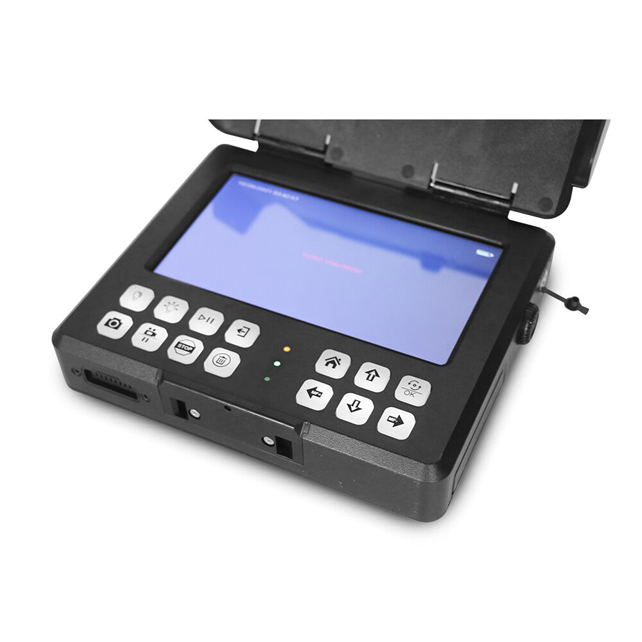

| DVR | HD DVR with 8" screen |
| Video Format | HD MP4 |
| Recording | Video/audio recording;Photography |
| Photography | Photography capture |
| File | Rename file function |
| Distance | On-screen |
| Panel | Nigh vision and waterproof |

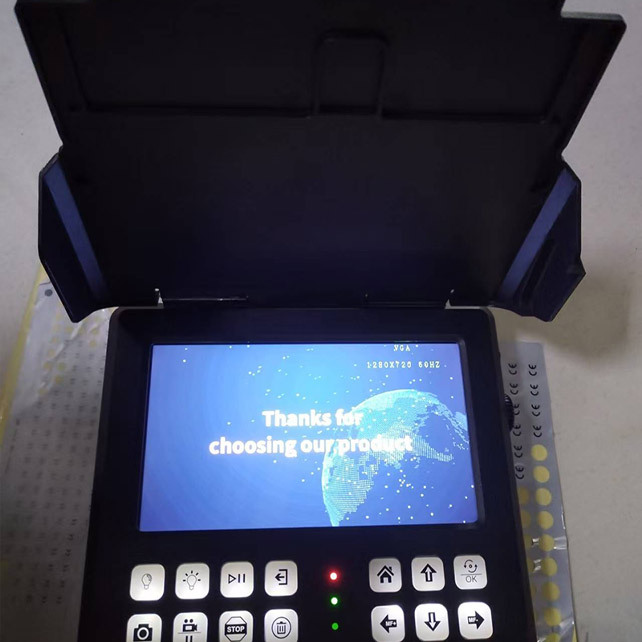

| Screen | 8" with 1280*720 resolution |
| Built-in Battery | 6800mA rechargeable battery and 6 hours run-time |

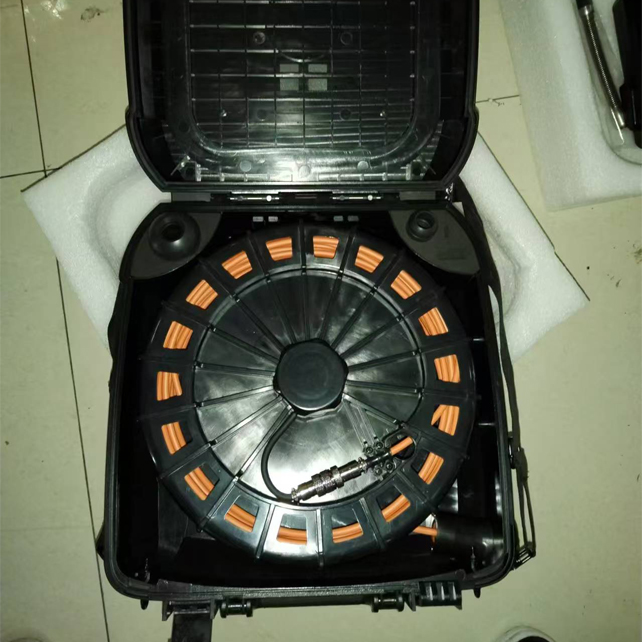

| Push rod cable wheel | |
| Rod Thickness | Φ6mm/red color |
| Length | 20m/30m/35m |
| Cable Reel Size | Φ310mm*63.5mm(H) |
| Remove Cable | Cable reel can removeable from the body |
| More option for head | |
| Option#1 | With extra Φ18mm common camera head |
| Option#2 | With extra AHDΦ23mm self-level camera head |
| Option#3 | With extra AHDΦ23mm built-in sonde camera head |
| Option#4 | With extra AHDΦ29mm self-level camera head |
| Option#5 | With extra Φ14mm common camera head+extra cable reel,easy replacement |
| Option#6 | With extra ΦPT33 head+complete wheel pack,easy replacement |
Product Downloads
Detail Spec Download
