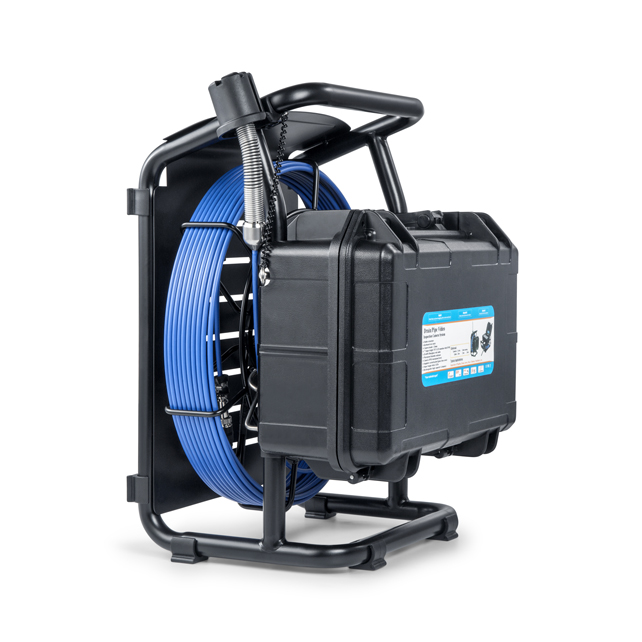

Compact Micro Push Rod Pipe Inspection Camera System P10001-U

This Mini video inspection camera system widely application in the subsurface utility infrastructure,construction,municipal work and plumbing service.Compact and easy-of use uniquie design increase productivity and profitablity.Two sizes of user rechargeable cameras for different pipe range inspection.Affordable price,high performance.

Advantage:

Compact and easy operation design,increase the profitability for the plumber work
7" Display with integrated DVR
QWERTY cordless keyboard
On-Screen distance counter and battery life
One-Button recording
Built-in microphone for audio record
Max 32G storage
512hz sonde
9 Menu Languages
Flexible push rod cable work for rugged pipe well

	Camera #1	Camera#2	Camera#3
Dimensions	∅14mm	∅23mm self-level	∅38mm self-level
Pipe Diameter Range	25mm-80mm	45mm-150mm	100-250mm
Resolution	480TVL	480TVL	480TVL
Construction	Stainless-steel housing and saphhire lens	Stainless-steel housing and saphhire lens	Stainless-steel housing and saphhire lens

with dia.23mm camera


with dia.14mm camera

14mm camera head with the P10001-U 642.jpg

**Detail Spec **

Camera Head
1.Head Dimension	∅23mm*45mm,go through the 90° bend in dia 45mm pipe
2.Sensor	1/3” Sony CCD
3.Camera Housing	#304 stainless steel
4.View Angle	120°
5.Lens Cover	Sapphire glass
6.Light	12pcs High bright white Leds,adjustable brightness
7.Waterproof	2Bar
8.Focus Distance	20cm(Approx)
Hidden Cable Wheel
1.Cable Diameter	∅5.2mm
2.Material	flexible fiberglass rod
3.Wheel Material	Stainless steel
4.Wheel Diameter	∅33cm
5.Length Option	20m(66ft)/30m(100ft)/40m(130ft)
Monitor and Built-in Control Panel
1.Monitor Size	7 inch monitor
2.Video Out	MPEG-4
3.Recording	Video/auidio/text recording
4.Menu Language	9 language for choose
5.Storage	SD card storage
Packing list
1Suitcase 1Push cable with wheel 1Camera Head 1Screw driver 146mm Skid 180mm skid 1Adaptor 1Car charger 1Connector Cable 1Remote control
Gross Weight	12KG
Packing Carton Size	55CM44CM35CM
